CONSTRUCTION
Chassis: Double hot dip galvanized RHS (3.5-5.0mm)
Frame: Double hot dip galvanized RHS (2.5mm)
Body Panel: galvanized sheet (1.0-1.5mm)
Roof: Special molded FRP 3,475 x 1,750 x 3mm
Nuts & Bolts: Stainless Steel

WHEELS & TYRES
Rims: 15” Aluminum Alloy Rims
Tyres: 6 x 195/70R15 (includes 2 spares)
Steel Rim options available

AXLES & SUSPENSION
Axles: Two special trailer axles 50 x 50mm
Leaf Springs: 6 Leaf Tandem Rocker Roller Suspension Spring
Brake System: Double axle electric brakes, front axle also with hand brake

WINDOWS & DOORS
Front Window: 1,220 x 610 mm
Side Windows: 1 sliding window on each side
Vents: 1 large size double-open skylights
Side Door: 1,675 x 670mm
Rear Upper Door: 1,980 x 1,065mm
Ramp Door: 1,800 x 1,210mm
Rear Door Strut: High-intensity Anti-rust Strut
Hinges For Rear Upper Door: Special 6mm diameter copper hinges

DRAWBAR
Couplings: 50mm Ball Coupling
Drawbar Checker Plate: 1.2mm Aluminium Checker Plate
Drawbar Safety Chain: Two
Bracing Wheel: One
Plug: 7 pin flat as standard

LIGHTS & RETRO REFLECTORS
Inner Lights: Two Touch Switch LED Lights
Rear Lights: Two LED Combination taillights, with reverse lights**
Width Lights: Six Width LED Lights
License Plate: One

MUDGUARDS
Steel or Mudguard Checker Plate: 1.2mm aluminium Checker Plate in front of Mudguards**
Pedal & Aluminium Step: 1.2mm aluminium Checker Plate**

FLOOR & RUBBER MATTING
Inner Flooring: Whole sheet 18mm TUFF Board & whole sheet 8mm
Rubber Matting
Inner sideboard: Whole sheet 18mm TUFF Board & aluminium board outside
Flooring of ramp door: Whole sheet 15mm TUFF Board & whole sheet 10 mm
Rubber Matting
Horse Protection Frame: Fully Padded
Horse Ring: 2 Inside & 4 Outside
Rug Rack Optional**

STANDARD FITTINGS
Fully adjustable bays

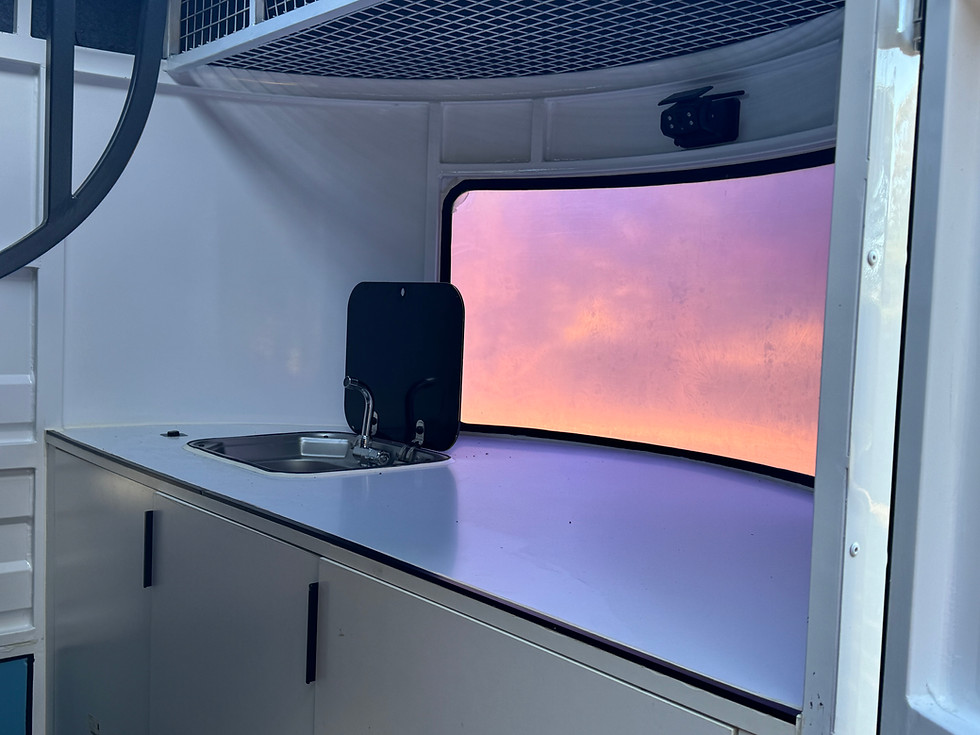

Premium front kitchen
60L water tank, water pump, internal sink, and exterior tap
240v/12v power supply
Double Sockets with USB

DIMENTIONS
Overall: 4,700 x 2490 x 2600mm
Body: 3,860 x 1,980 x 2,230mm
Inner: 3,810 x 1,930 x2,155mm

WEIGHTS
Tare: 1,350kg
Gross: 2,900kg
Aggregate: 3,100kg

Straight Load floats are only available by custom order. Pricing starts at $19,990.00
